Club 5 Racing Part #C-S04-007 EZON Functional Lighting Controller for RC Crawlers

Part #C-S04-007

EZON Functional Lighting Controller for RC Crawlers

Designed from the ground up, specifically for scale crawler RC.  User friendly is our #1 focus and simplicity is our ultimate goal.  So you won't find any fancy flashing lights or confusing modes to set up, all functional lights are there to do what they're supposed to do.

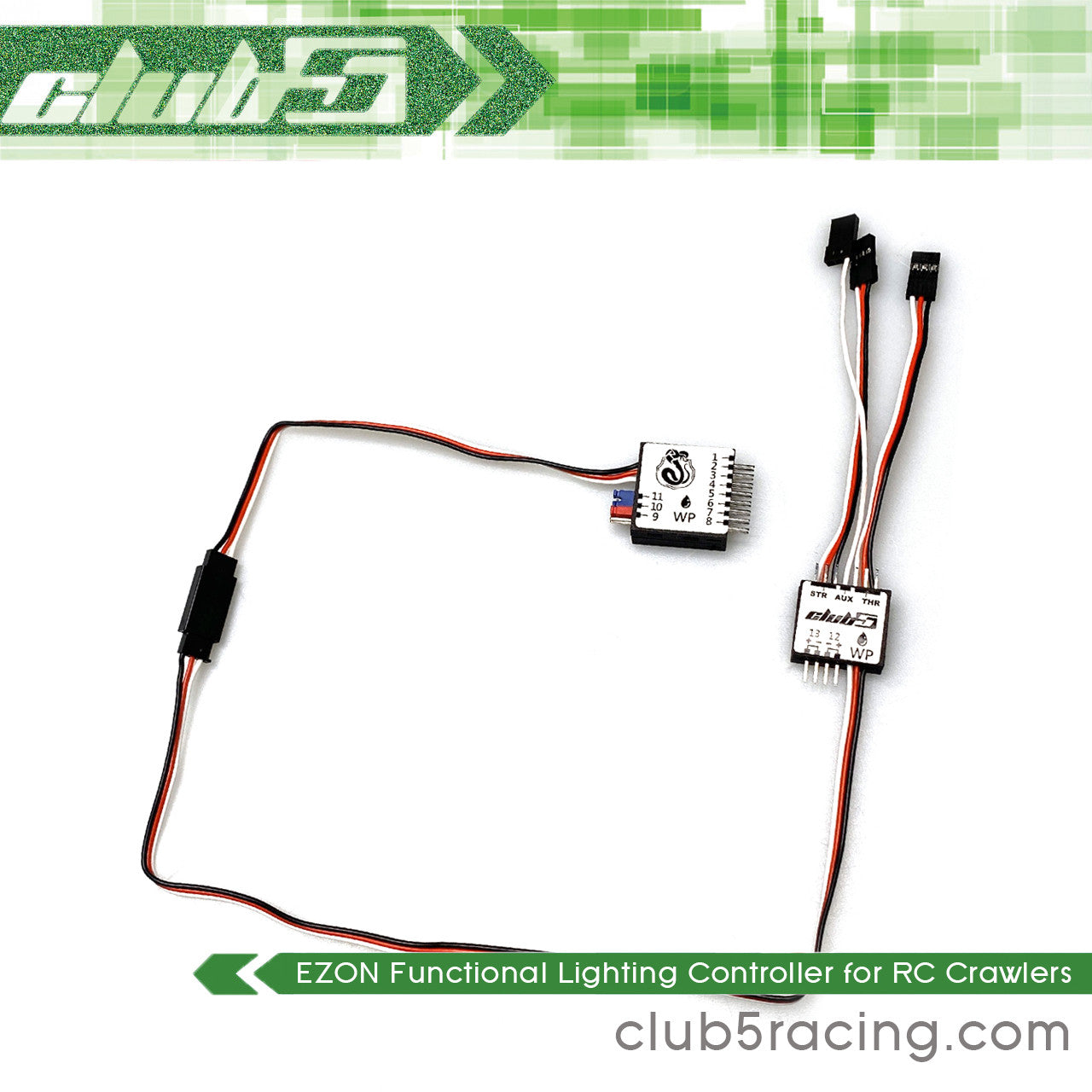

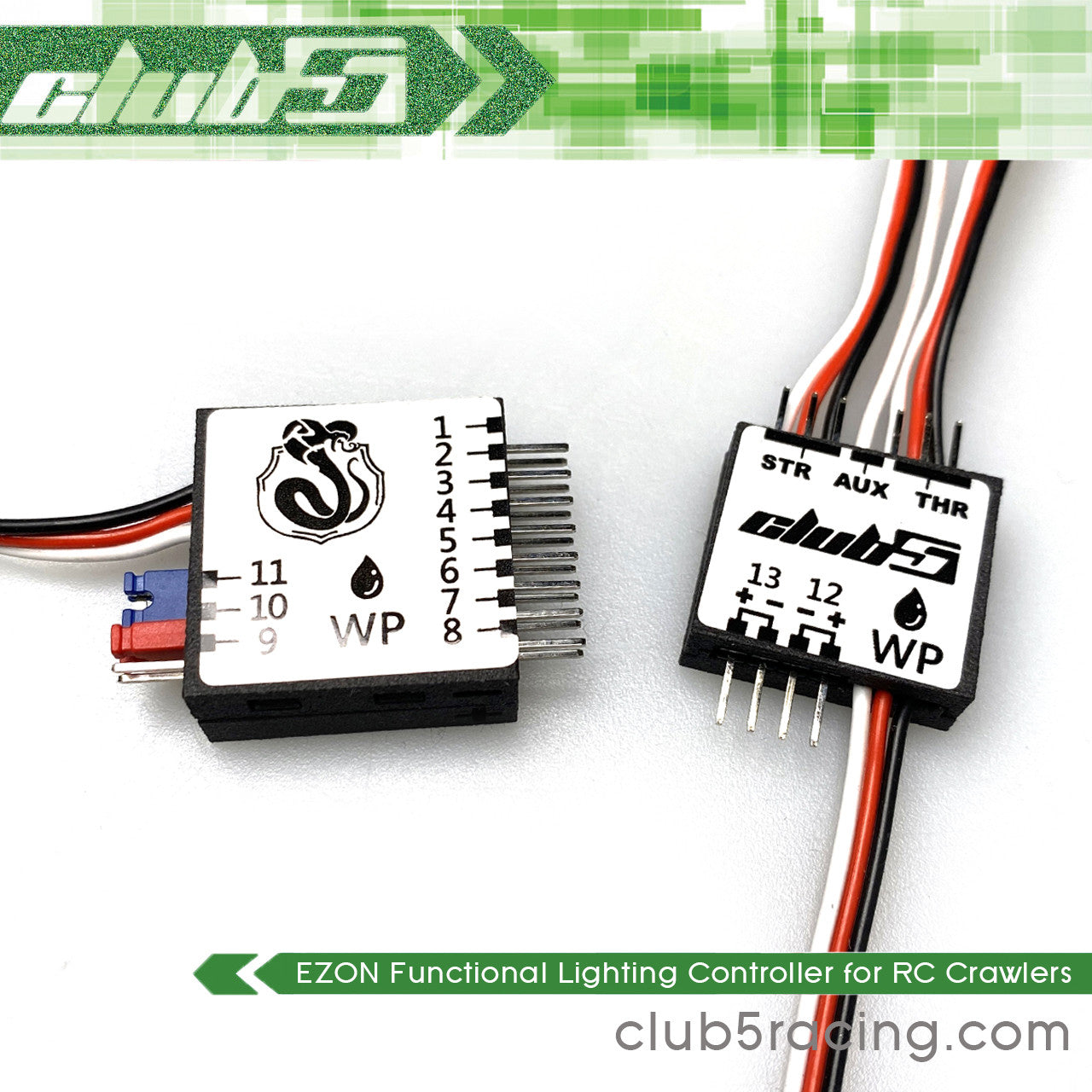

One of the key design feature is that we have splitted the control unit into two circuits: Primary circuit on the body for all the LED connections and the Secondary circuit with very small footprint remains on the chassis, small enough you can fit it in many of the stock water tight receiver box. So when you need to remove the body for replacing batter or if you need to do other maintenance, there is only ONE wire to disconnect from the chassis, that's how EASY it is!!

The Y connections to the Servo (CH1) and ESC (CH2) is also integrated into the secondary circuit to make the whole set up tidy.  And there is an optional Bumper lights and the 3rd window mount break light available for your additional needs that can connect right into the secondary circuit.

Our Easy On control circuit will works on Traxxas TQi transmitter and most of other ones with two position third channel control such as Futaba or Speckrum.  Besides turning signal lights, break lights and reverse lights will come on as controlled from the transmitter, you can have the total command over all the lights remotely through the third channel.
