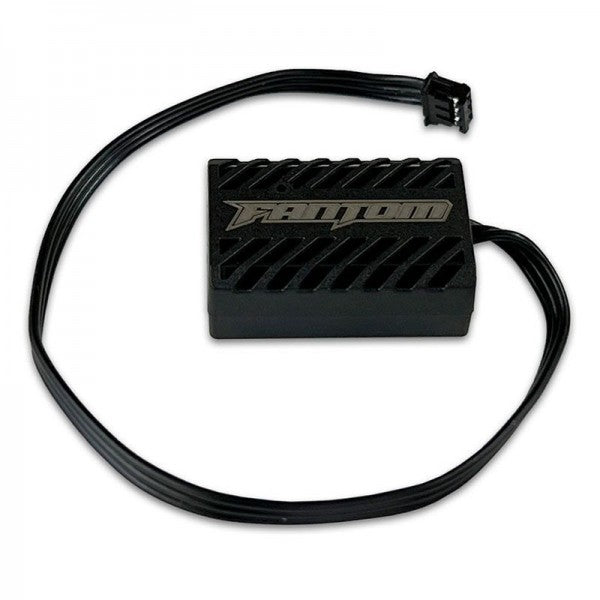

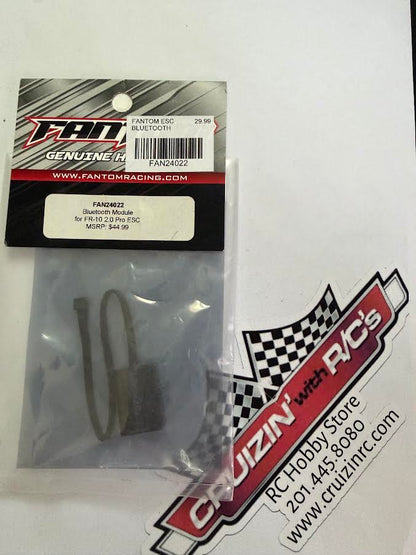

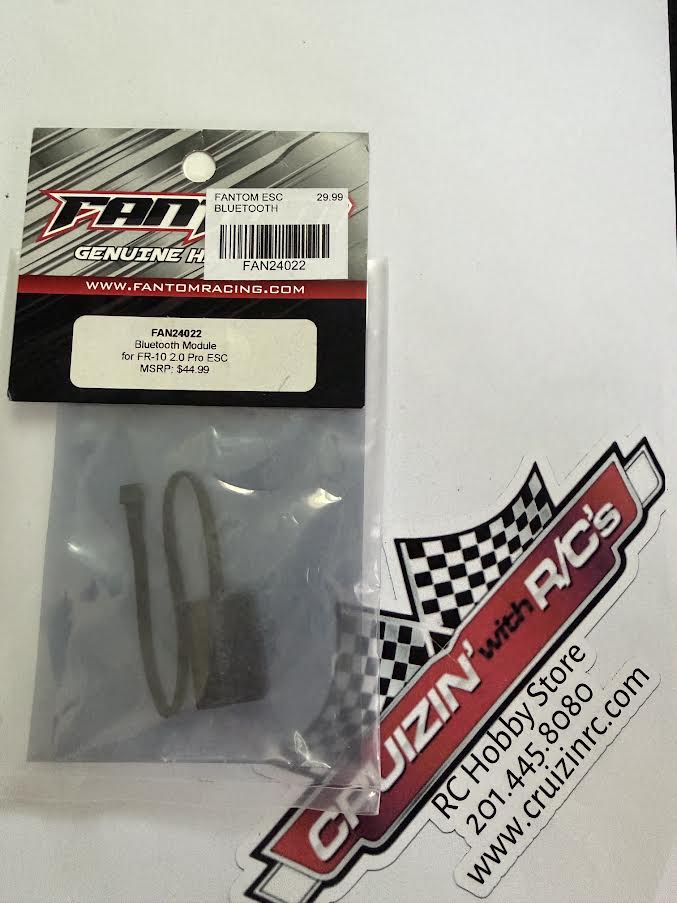

Fantom Racing Part #FAN24022 FR-10 2.0 Pro ESC Bluetooth Program Module

Part #FAN24022

FR-10 2.0 Pro ESC Bluetooth Program Module

Features:

• Designed specifically for the Fantom FR-10 2.0 PRO electronic speed control, for customizing the parameter settings and firmware upgrades via our free Apple or Android App.

More Power to the People…

SPECIFICATIONS:

• Dimensions:  (L/W/H)
• Weight:

PROGRAMMABLE PARAMETERS: UPDATED PARAMETER INFO COMING SOON

GENERAL:

• RUNNNING MODE – Forward/Brake, Forward/Brake/Reverse, Forward/Reverse
• LOW VOLTAGE CUTOFF – Disable, Auto, custom 3.0v to 11.1v (0.1v increments)
• ESC OVER-HEAT PROTECTION – Disable, 3 steps
• MOTOR ROTATION – Normal, Reverse
• DEADBAND – 12 steps
• BEC OUTPUT – 6v, 7.4v

THROTTLE:

• INITIAL POWER LIMITER – 30 steps
• THROTTLE RATE – 30 steps
• DRIVE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• RPM LOCK – 1% to 100% (1% increments)
• THROTTLE CURVE – Linear, Custom

BRAKE:

• INITIAL BRAKE – 1% to 20% (1% increments)
• DRAG BRAKE – 0% to 100% (1% increments)
• BRAKE FORCE – 0% to 100% (12.5% increments)
• INITIAL BRAKE RESPONSE – 20 steps
• BRAKE RATE – 20 steps
• BRAKE FREQUENCY – 1K, 2K, 4K, 8K, 16K
• BRAKE CURVE – Linear, Custom

BOOST:

• BOOST TIMING – 0° to 64° (1° increments)
• BOOST TRIGGER LEVEL – 50 steps
• BOOST TRIGGER RATE – 10 steps

TURBO:

• TURBO TIMING – 0° to 64° (1° increments)
• START RPM – 4,000 RPM to 50,000 RPM (1000 RPM increments)
• TURBO DELAY – Instant, 0.05 seconds to 1 second (.05 second increments)
• ACTIVATION METHOD – Full Throttle, RPM, Full Throttle + RPM
• TURBO ON RATE – 10 steps
• TURBO OFF RATE – Instant, 10 steps

DATA:

• MINIMUM BATTERY VOLTAGE
• MAX ESC TEMP
• MAX MOTOR RPM

FEEL THE POWER…FEEL THE FANTOM!
