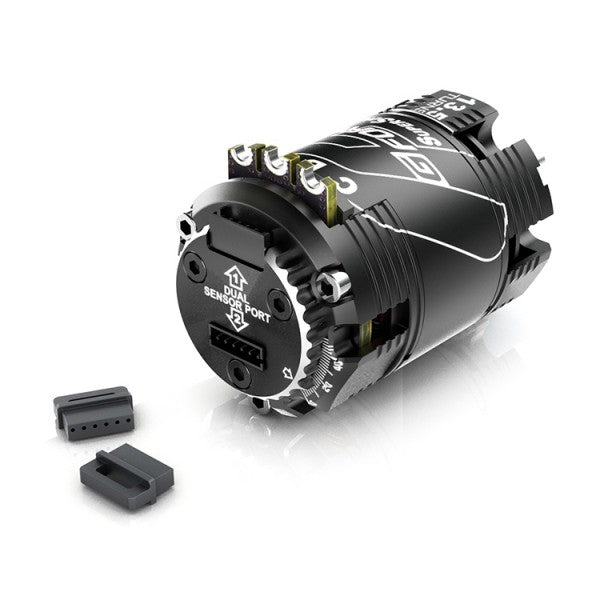

G-Force RC Part #GF-G0008 Supersonic 13.5 T Brushless Motor

G-Force RC Part #GF-G0008 Supersonic 13.5 T Brushless Motor

$98.00 USD
$98.00 USD
Sale Sold out
Shipping calculated at checkout.

Features

Breakthrough the Blushless motor

  • CNC Machined Billet T6 Aluminum Heatsink Can

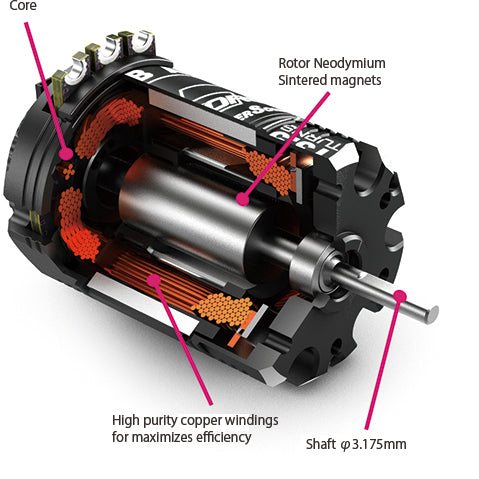

  • High Purity Copper Windings Maximizes Conductivity
  • High Power Solder Tabs

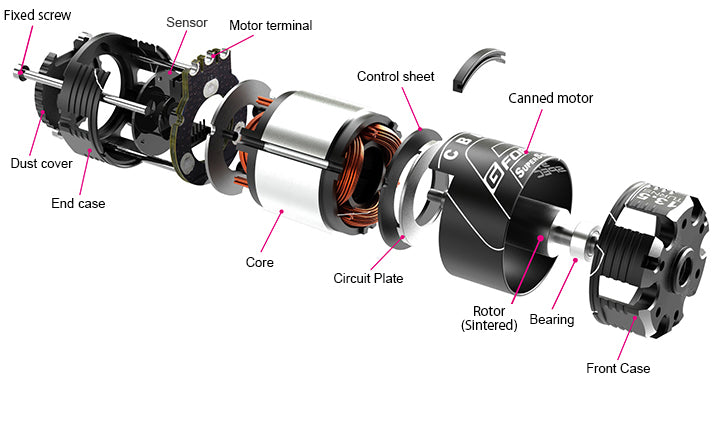

  • Removable/Replaceable Rotor
  • Powerful Sintered Neodymium Magnet
  • Precision Engineered for Maximum Energy Conversion
  • Dual Sensor Port
  • Incorporate Radial Fan in Front End Bell
  • Adjustable Timing
  • Compatible with any Sensored/ Sensorless ESC
  • IFMAR, ROAR Compliance



Specifications

Turns Rotor (mm) KV (RPM/VCLT) Internal Resistance Voltage Watts (W)
3.5T 12.5*5(mm) 9100 0.0026Ω 7.4V 600
4.5T 12.5*5(mm) 7620 0.0042Ω 7.4V 490
5.5T 12.5*5(mm) 6450 0.0061Ω 7.4V 430
6.5T 12.5*5(mm) 5350 0.0087Ω 7.4V 390
7.5T 12.5*5(mm) 4700 0.0104Ω 7.4V 360
8.5T 12.5*5(mm) 4100 0.0138Ω 11.1V 340
10.5T 12.5*5(mm) 3450 0.0208Ω 11.1V 250
13.5T 12.5*5(mm) 2860 0.0331Ω 11.1V 190
17.5T 12.5*7.2(mm) 2200 0.0514Ω 11.1V 130
21.5T 12.5*7.2(mm) 1760 0.0875Ω 11.1V 100

Bearing Size

  F bearing size R bearing size
Super Sonic 685ZZ(￠5*￠11*5mm) R2ZZ(￠3.175*￠9.525*3.967mm)
Super Velocity R2ZZ(￠3.175*￠9.525*3.967mm) R2ZZ(￠3.175*￠9.525*3.967mm)
Super Fast R2ZZ(￠3.175*￠9.525*3.967mm) R2ZZ(￠3.175*￠9.525*3.967mm)
Fujin R2ZZ(￠3.175*￠9.525*3.967mm) R2ZZ(￠3.175*￠9.525*3.967mm)
Raijin R2ZZ(￠3.175*￠9.525*3.967mm) R2ZZ(￠3.175*￠9.525*3.967mm)
