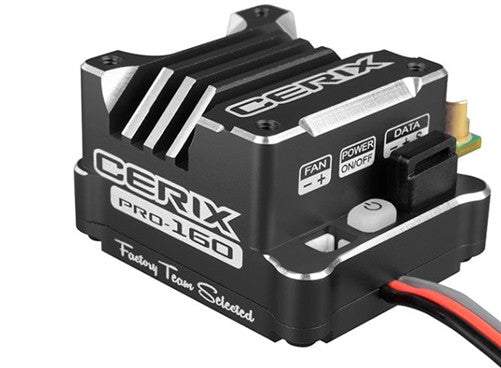

Team Corally Part #C-53003-1 Cerix Pro 160A Racing Factory Black Edition 2-3S ESC

Part #C-53003-1

Cerix Pro 160A Racing Factory Black Edition 2-3S ESC

This is the Team Corally Cerix Pro 160A Racing Factory Black Edition 2-3S ESC for Sensored or Sensorless Motors.

The CERIX-PRO 160 is manufactured with the highest grade components to ensure the lowest possible internal resistance resulting in a optimized performance. The CERIX-PRO 160 controller give the 1/10 On-Road and 1/10 Off-Road competition racer what he needs. You will experience the best controllability of your 1/10 Racing Cars, no matter you use it with Spec or Modified motors.

• For sensored and sensorless motors
• Ultra compact design
• Aluminum case for improved heat dissipation
• Built in Capacitors
• Built in power switch
• Advanced boost and turbo timing system for improved acceleration performance
• Enhanced throttle and brake control function.
• 10 programmed profiles can be stored in the ESC
• Adjustable BEC voltage 6.0V 5A or 7.4V 5A Current
• Powerful TC Link software to test motor timing and advise the best ESC timing setting

PROGRAMMING FEATURES:

• Running Mode
• Cut-off Voltage
• Overheat protection
• Motor Rotation
• Reverse Speed
• Dead Band
• Punch Rate SW- Point
• Punch Rate 1
• Punch Rate 2
• Throttle Curve
• Initial Brake
• Drag Brake
• Brake Strength
• Brake Rate Control
• Brake Curve
• Boost Timing
• Start RPM
• End RPM
• Boost Constraint
• Boost Slope
• Turbo Timing
• Activation Method
• Turbo Delay
• Start RPM
• Turbo Slope

TECH SPECS:

• Application: 1/10 Touring - 1/10 Pan Car - 1/10 Off-Road - Crawlers
• Cont. Current (A): 160A
• Burst (A): 800A
• # of Li-xx Cells: 2-3S
• BEC: 6V 5A or 7.4V 5A
• Motor Type: Sensored - Sensorless
• Motor Limits:
  • 2S Li-Po: 3.5T for 1/10 On-Road & 5.5T for 1/10 Off-Road
  • 3S Li-Po: 5.5T for 1/10 On-Road & 8.5T for 1/10 Off-Road
• Resistance: 0.00018 ohm
• Dimensions: 37x33x22mm (30mm Fan)
• Weight: 44g (53g Fan)
