Tekno Part #9017B – Sway Bar and Bulkhead Acc (for -2/-4mm bulkheads)

Product Description:

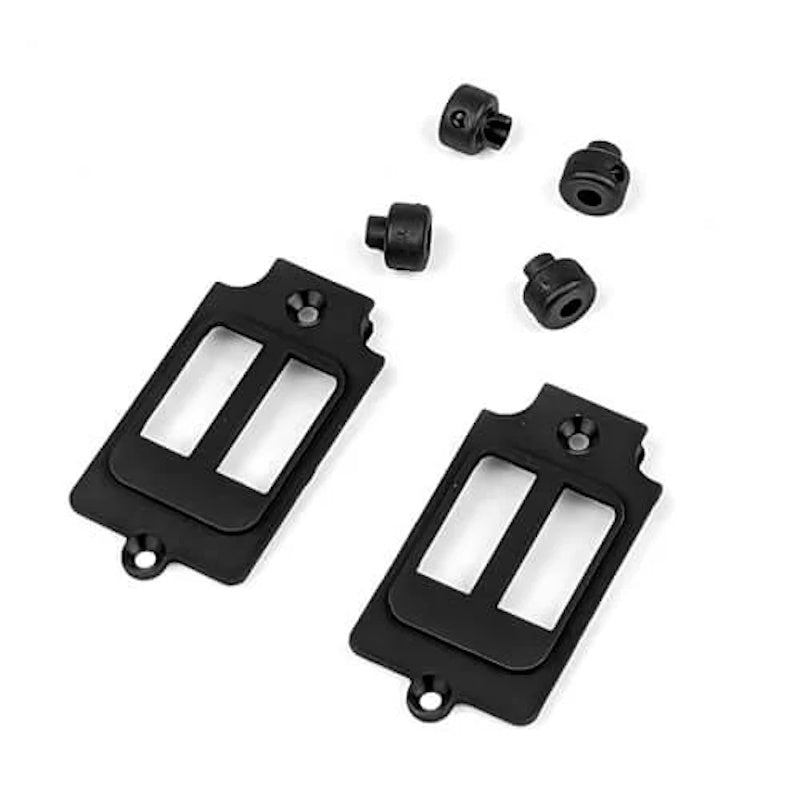

TKR9017B – Sway Bar and Bulkhead Acc (for -2/-4mm bulkheads)

When installing the new TKR9416B -2mm bulkhead, these new bulkhead covers must be used to provide more ring gear clearance compared to the stock TKR9017 covers. These new covers are not only open to the bottom, allowing the ring gear clearance, but they also seal the bulkhead by more precisely fitting into the chassis cutout under the bulkhead. The sway bar collars are the same as those included with TKR9017.

When installing the new TKR9416B -2mm bulkhead, these new bulkhead covers must be used to provide more ring gear clearance compared to the stock TKR9017 covers. These new covers are not only open to the bottom, allowing the ring gear clearance, but they also seal the bulkhead by more precisely fitting into the chassis cutout under the bulkhead. The sway bar collars are the same as those included with TKR9017.

Tip:

To help prevent very small dust particles from accessing the ring and pinion gears, we recommend applying a very thin layer of grease between the cover and chassis.

Recommended to use with:

TKR9054B – Rear Hubs and Bearing Spacers  (+/-2mm, adj roll center, L/R, EB/NB48 2.1)
TKR9416B – Gearbox (-2mm, F/R, EB/NB/ET/NT48 2.x)
TKR9284B – Suspension Arms (revised, rear, EB/NB48 2.1)

Vehicle Compatibility

• TKR9017B - Sway Bar and Bulkhead Acc (for -2/-4mm bulkheads) is included with the EB48 2.2, ET48 2.2, MT410 2.0, MT48 2.0, NB48 2.2 and NT48 2.2 kits and can be used as a replacement part for those vehicles.
• This can be used with the EB48 2.1, ET48 2.0, NB48 2.1 and NT48 2.0 vehicles and should be a direct replacement for the stock part or used as a new feature.
